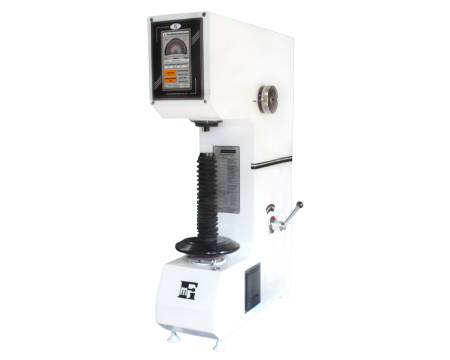

Touch Screen Digital Motorised Rockwell Cum Brinell HARDNESS TESTER (Model: TRSNB-TS)
Rockwell Cum Brinell Hardness Testing Machine is manufactured under strict quality control at all manufacturing stages. This model is suitable for testing hardness of metals and alloys of all kinds, hard or soft, whether flat or round etc. or of irregular shape. This model is having superior design to that of existing conventional Rockwell Hardness Testers & easy to operate still quite sensitive & accurate.
Features :
- Unidirectional Big Dial type auto load selection knob for load selection of loads 60,100 &150 kgf.
- Most of the important parts are plated to avoid rusting.
- An antifriction linear bearing is fixed in Hardened & ground stepped bush which will provide perfect vertical movement of diamond holder. Thus the testing of small pin or ball upto 3mm dia is possible.
- All models conform to - IS: 1586, BS 10109-2, ASTM-E-18 & ISO IS: 2281, BS 10003-2, ASTM-E-10 & ISO 6508-2 for Rockwell Test. 6506-2 for Brinell Test.
SALIENT FEATURES:
- 7" (800 x 480) pixels Colors TFT display.
- Minor load is graphically displayed on TFT screen (Minor load auto brake system)
- Provision of Numbers. of tests, mean, maximum, minimum range.
- Dwell Time setting for MAJOR & MINOR load is 1-30 sec.
- 100 Results are stored in the system with automatic result data storage.
- Storage capacity can be extended by using external pen drive.
- Motorized Automatic Loading/Unloading as well as Manual Loading/Unloading is selectable.
- In built thermal printer
Standard Accessories:
| MODEL | TRSNT-TS |
|---|---|
| Rockwell Diamond Indenter | 1 No. |
| Superficial Diamond Indenter | 1 No. |
| Testing Table Ø 50mm | 1 No. |
| Testing Table Ø 40 mm with 'V' Groove for round Jobs Ø 6 to 45 mm | 1 No. |
| Steel Ball Indenter Ø 1/16" | 1 No. |
| Test Block HRC | 1 No. |
| Test Block HRB | 1 No. |
| Test Block Rockwell Superficial 30N | 1 No. |
| Steel Ball Ø 1/16" | 5 No. |
| Allen Spanners | 3 No. |
| Clamping Device | 1 No. |
| Telescopic Sleeves for elevation screw | 1 Set |
| Instruction manual | 1 Book |
Technical Specifications:
| MODEL | TRSNT-TS |
|---|---|
| 1. Test Loads (kgf) | 15, 30, 45, 60, 100, 150 |
| 2. Initial Loads (Kgf) | 3 kgf for superficial test, 10 kgf for Rockwell |
| 3. Max. Test Height (mm) | 210 |
| 4. Depth of Throat (mm) | 130 |
| 5. Size of Base (mm) (Approx.) | 640 × 200 |
| 6. Machine Height (mm) | 885 |
| 7. Net Weight (Approx.) kg | 90 kg |
