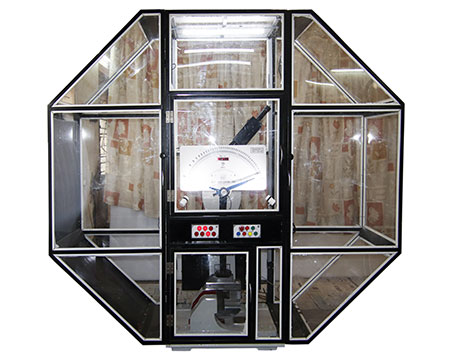

Motorised Impact Testing Machine
Features :
- Capacity: Charpy: 300 / 400 Joule.
- Lifting operation of pendulum Hammer is motorized. Hence there is no strain & fatigue to operator while lifting the pendulum hammer frequently.
- Only one operator can operate the machine easily & rapidly.
- To stop the pendulum swing solenoid Magnetic Brake is provided.
- To prevent accident large safety guard with open able doors & with interlocking system is provided for complete safety.
- Transparent acrylic glass sheet is fitted to safety guard.
- Machine conforms to ASTM-E 23, BSEN ISO 148 & IS standards (for IZOD & CHarpy scales).
- Total Maintenance free Impact Machine.
- Note : Higher capacity 600,750 Joules impact machine are also available.
- MA - Motorised Anologue Dial , MD - Motorised Digital Display
Standard Accessories :
- Charpy Striker R2 mm - 1 No.
- Izod Strike R0.75 mm - 1 No.
- Charpy Striker R8 mm - 1 No(Optional)
- Charpy - Izod support Block - 1 No.
- Specimen setting Gauges for Charpy & Izod - 1 Each.
- Allen key Set & tools - 1 set.
- Foundation Bracket - 1No. Model : FIT-300/400-MA/MD
- Instruction Manual - 1No.
Model :
- Analogue - FIT-300/400-ASTM & Digital - FIT-300/400-ASTM-D
