UTM Accessories

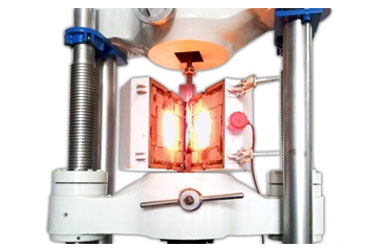

HOT Chamber :

Hot Chamber assembly with UTM is supplied as an extra accessory to check tensile strength related parameters of the samples at hot condition.

Technical Specification :

1	Temperature Range	300° to 1200°C
2	Max Gauge length of sample in hot Chamber	100 mm
3	Main Supply	230V, AC, 50 Hz, 16 amp
4	Max. Current	30 amp
5	Sample holding dia for small samples	M20, M12

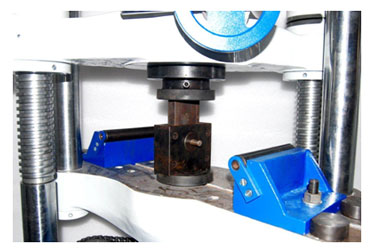

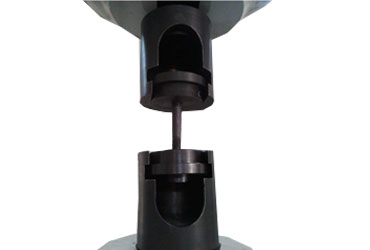

Small double shear / Big Double Shear :

• Small double shear test with 5 sets of bushes for shear test of Dia 5, 8, 12, 16 & 20 mm.
• Big double shear test with 5 sets of bushes for shear test of Dia 25, 30, 35 & 40 mm.

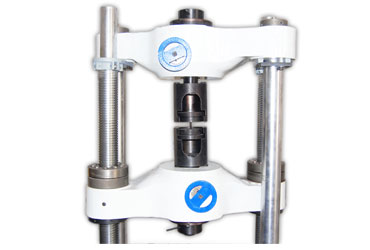

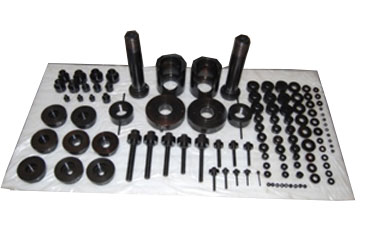

Tensile test attachment for shouldered and threaded specimen :

• Bare Attachment
• 1 Set of 8 split bushes with springs for Dia 6, 8, 10, 12, 14, 16, 18 & 20 mm shouldered specimen (size in mm)
• 1 Set of 6 threaded bushes for M 6, M 8, M 12, M 14, M 18 & M 20 threaded specimen

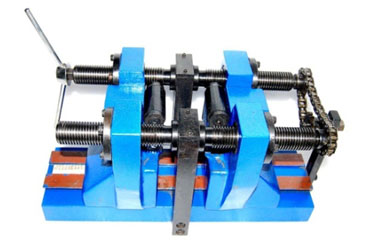

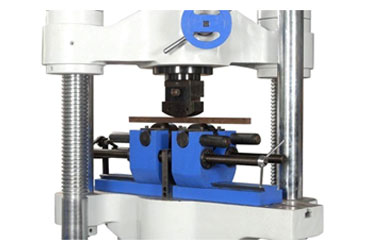

180°Bend test attachment :

• Dia of bending support rollers – 30 mm
• Width of bending support rollers – 60 mm
• Max. distance between bending supports – 175 mm
• Min. distance between bending supports – 15 mm
• Dia of bending pane pin – 30 mm
• The attachment meets the requirement of IS-1599-1976 & IS 692-1974

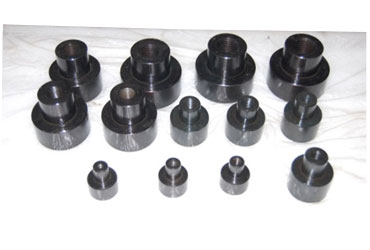

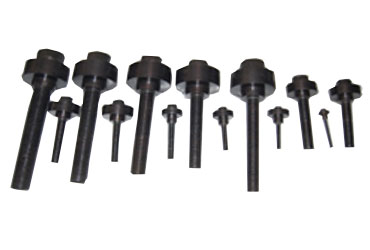

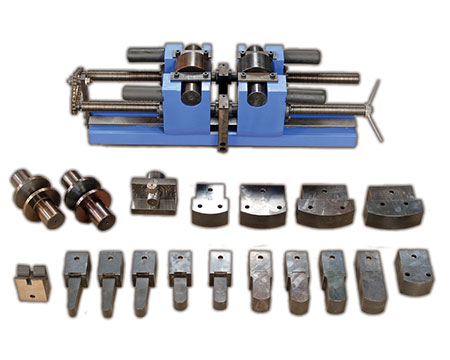

Bend Re-bend :

Bend Re-bend test attachment as per BS 4449-1997 for bar upto 40 mm dia bending tools of dia 16, 20, 24, 32, 40, 50, 60, 64, 80, 140, 175, 240, 280 & 320 mm.

Nut Bolt Testing Fixture :

Nut Bolt Testing Fixture as per IS 1367 Part 3 & 6 suitable for testing of Nuts & bolts from size M 6 to M 33

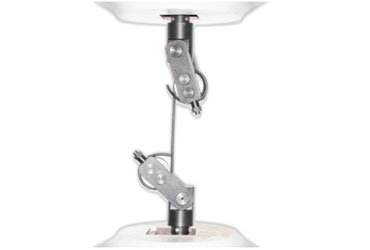

Wire Rope :

Wire rope tensile test attachment for wire rope upto 10 mm dia.

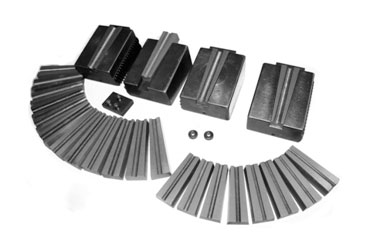

Grips for Strand wire :

Special Jaw Set & Inserts for Strand Wire suitable for Dia 6.35mm, dia 7.95mm, dia 9.5mm, dia 11.1mm, dia 12.7mm, dia 15.2mm
